ATV
All our machines are locked to 40 kmt. Do you need help with this type of task? So read more about what we can offer here.
ATV Specifications
All our machines are locked to 40 kmt

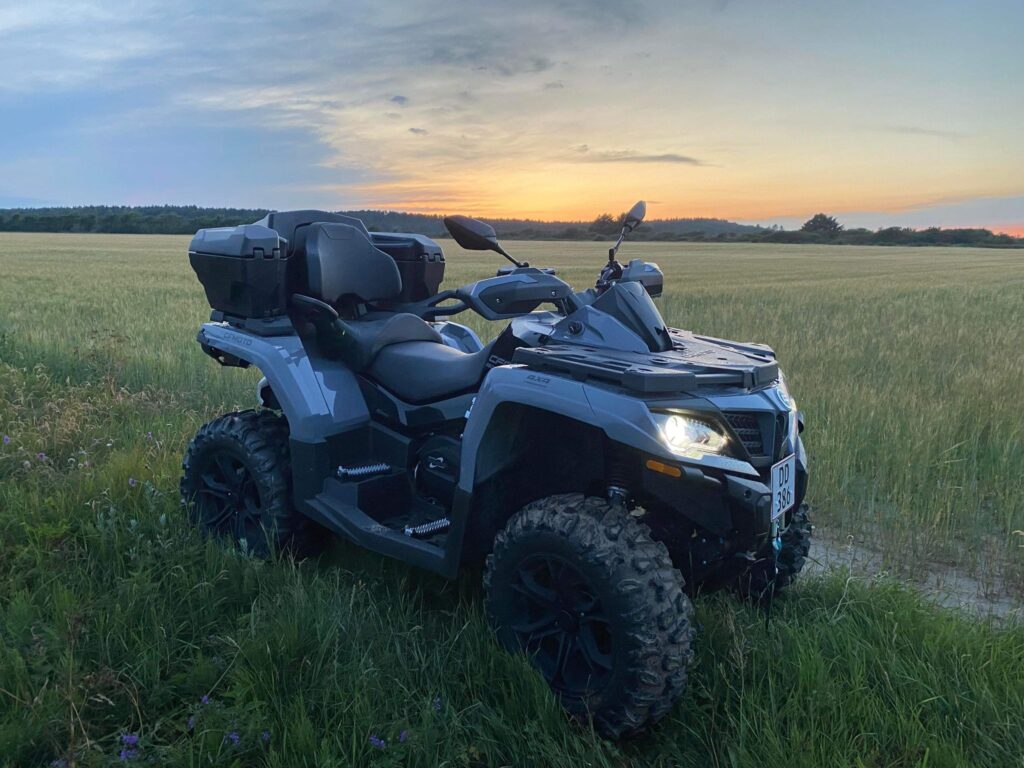

TECHNICAL SPECIFICATIONS FOR CF MOTO 625 ATV
- Number of torques (Up to) 49 nm / 5250 rpm
- Performance (up to): 30 kW / 41 hp
- Max. load: 135 kg (incl. 75 kg driver)
- Length (H/L)/Width/Height (H/L) : 2035 x 1180 x 1220 mm
- Tank volume: 18L
| Engine type: | 1 cylinder, 4 valves per cylinder, water-cooled, SOHC |
| Volume: | 580cc |
| Fuel system: | EFI |
| Gear system: | CVT |
| Serving weight: | 470 kg (inkl. 75 kg fører) |
| Measurements: | L/B/H: 2035 x 1180 x 1220 mm |
| Fuel quantity: | 18L |
| Color: | Titanium grey |
TECHNICAL SPECIFICATIONS FOR CF MOTO 850 ATV
- Number of torques (Up to) nm / 6000 rpm
- Performance (up to): 48,0 kW / 65 hp
- Max. load: 210 kg (incl. 75 kg driver)
- Length (H/L)/Width/Height (H/L) : 2395 x 1264 x 1420 mm
- Tank volume: 30L
| Engine type: | V-Twin 2 cylinder, 8 valve / cylinder is water cooled, SOHC |
| Volume: | 800 cc |
| Fuel system: | EFI |
| Gear system: | CVT |
| Pulling wheels: | 2WD / 4WD |
| EBS: | Yes |
| Suspension: | Olie / gas |
| Seat height: | 585 mm |
| Ground clearance: | 285 mm |
| Turning radius: | 7,8 m |
| Front deck: | 26×9-14″ steel |
| Rear tire: | 26×11-14″ steel |
| Serving weight: | 556 kg (incl. 75 kg driver) |
| Goal: | L/B/H: 2395 x 1264 x 1420 mm |
| Fuel quantity: | 30 l |
| Instruments: | LCD |
| Color: | Grey |

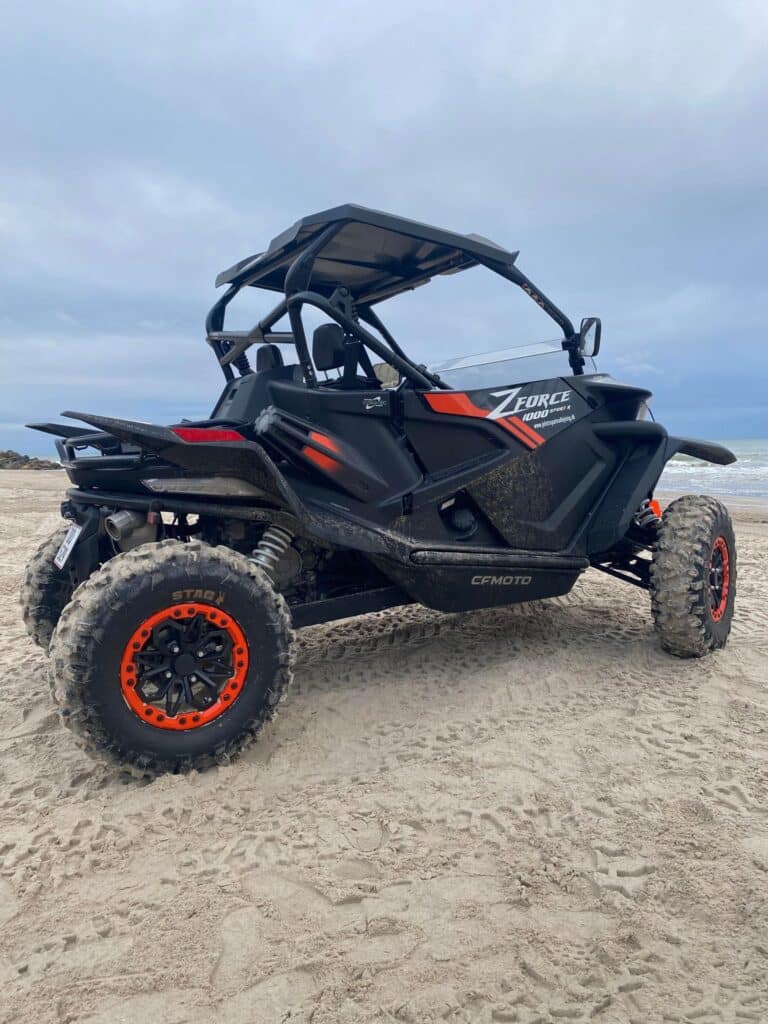

TEKNISKE SPECIFIKATIONER FOR CF MOTO Zforce 1000 UTV
| Engine type: | V-Twin, 4-stroke, 8 vent/cyl, water-cooled |
| Volume: | 962,6 cc |
| Fuel system: | EFI |
| Gear system: | CVT |
| Pulling wheels: | 2WD / 4WD / 4WD Lock |
| EBS: | Yes |
| Suspension: | Olie / gas |
| Seat height: | 395 mm |
| Ground clearance: | 340 mm |
| Turning radius: | 7,8 m |
| Front deck: | 27×9-14″ steel |
| Rear tire: | 27×11-14″ steel |
| Serving weight: | 695 kg (incl. 75 kg driver) |
| Goal: | L/W/H: 2870 x 1510 x 1845 mm |
| Fuel quantity: | 36,5 l |
| Instruments: | LCD |
| Color: | Black |
